Diagnostic Plots

Every fitted estimator has a plot method. It draws one of six diagnostic plots, chosen with kind:

Each kind is also a method of its own (plot_memberships, plot_history, plot_rule_activation, plot_diagnostics, plot_feature_importance, plot_gates), which is easier to discover with autocompletion.

Plotting needs matplotlib, which is an optional dependency:

pip install highfis[plot]

The plots follow the usual matplotlib conventions: they accept ax to draw on existing axes, they return the Axes (single panel) or the Figure (several panels), and they never call plt.show() or change global settings. Save a plot with fig.savefig("plot.png"), or ax.figure.savefig("plot.png") for a single panel.

The examples below share one fitted model:

from sklearn.datasets import load_wine
from sklearn.model_selection import train_test_split
from sklearn.preprocessing import MinMaxScaler

from highfis import HTSKClassifier

X, y = load_wine(return_X_y=True)
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.25, random_state=0, stratify=y)
X_fit, X_val, y_fit, y_val = train_test_split(X_train, y_train, test_size=0.25, random_state=0, stratify=y_train)

scaler = MinMaxScaler().fit(X_fit)
X_fit, X_val, X_test = scaler.transform(X_fit), scaler.transform(X_val), scaler.transform(X_test)

clf = HTSKClassifier(n_mfs=3, epochs=100, random_state=0)
clf.fit(X_fit, y_fit, x_val=X_val, y_val=y_val, metrics=["accuracy"])

fig = clf.plot()                                              # memberships
ax = clf.plot(kind="history")
ax = clf.plot(kind="rule_activation", X=X_test, y=y_test)
fig = clf.plot(kind="diagnostics", X=X_test, y=y_test)

Membership functions

fig = clf.plot(kind="memberships")

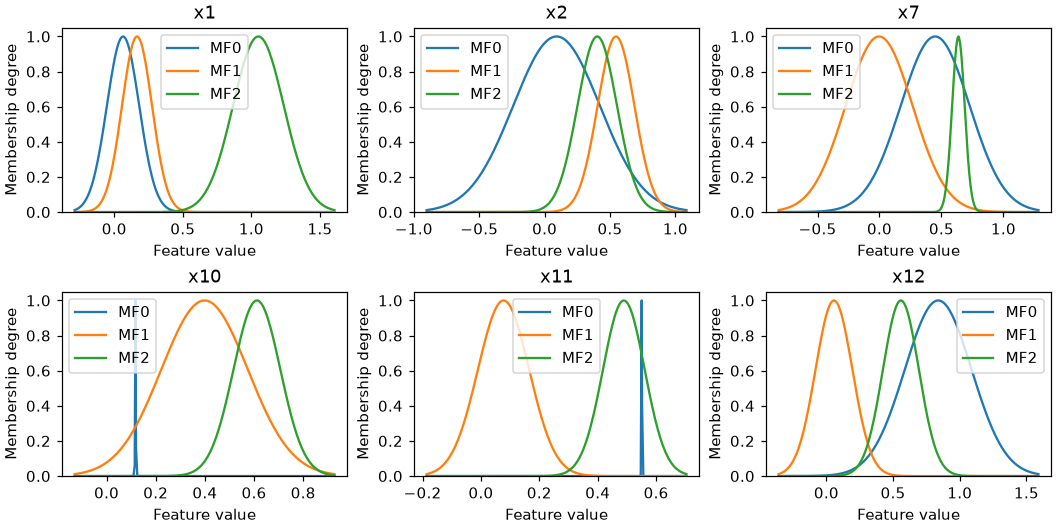

One panel per feature, one curve per fuzzy set, drawn from the trained model itself.

• With more than max_features features (6 by default), the most important ones according to feature_importance() are shown. Pass features=[...] to choose them, by name or by column index.
• Panels are titled with the feature names when the model was fitted on a pandas DataFrame, and with x1, x2, ... otherwise.
• The horizontal range is taken from the fuzzy sets. Pass X= to span the data instead.
• Families that prune features (DG-TSK, DG-ALETSK, FSRE-ADATSK) show the features that survived.

What to look for: sets that overlap almost completely carry the same information; a set much narrower than the others covers very few samples.

Training history

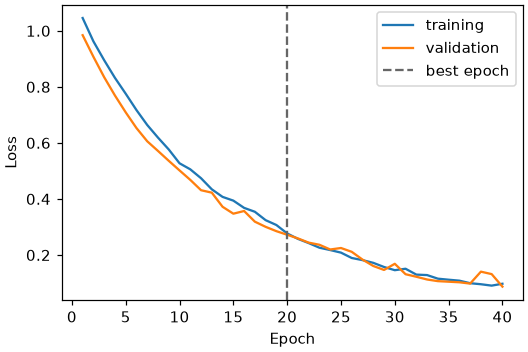

ax = clf.plot(kind="history")
ax = clf.plot(kind="history", metric="accuracy")

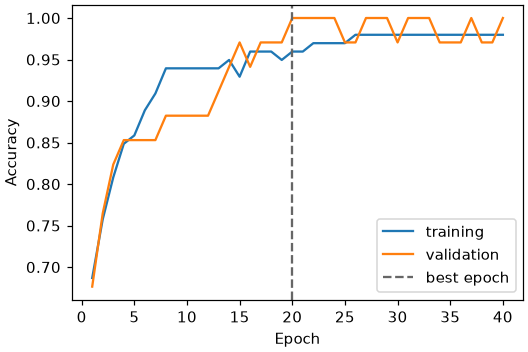

The validation curve appears when a validation set was passed to fit, and the dashed line marks the best epoch, whose weights the model keeps. For classifiers the best epoch is the one with the highest validation accuracy, not the lowest validation loss, so training can stop while the loss is still falling, as it does here. For regressors it is the epoch with the lowest validation loss.

metric plots any metric requested in fit(..., metrics=[...]):

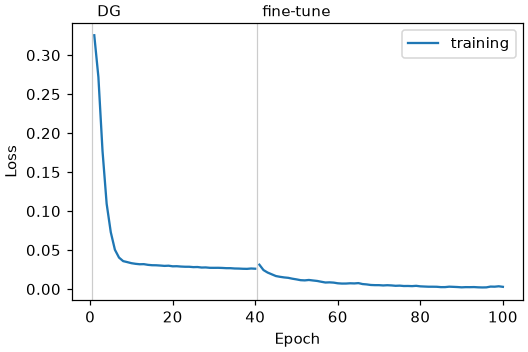

Families that train in phases show them one after the other:

What to look for: a training curve that keeps oscillating at the last epoch means the model returned depends on where training happened to stop. Lower the learning rate or use a scheduler.

Rule activation

ax = clf.plot(kind="rule_activation", X=X_test, y=y_test)

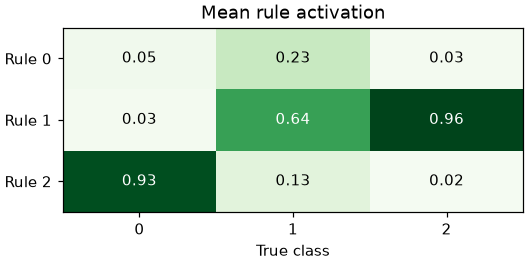

Each cell is the mean normalized firing strength of a rule over the samples of a class. Without y, or for a regressor, the plot is a bar per rule over all samples.

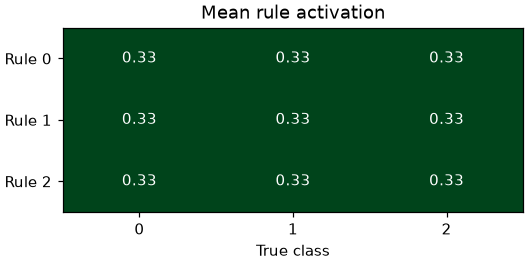

What to look for: in a model that uses its rules, each class is carried by one or a few rules, as above. A plot where every cell has the same value means the rules do not discriminate. That happens to the classical TSK when the product of many membership degrees underflows: every rule gets the same weight and the model reduces to a single linear model. Here is the same data fitted with TSKClassifier:

Its accuracy is still high on this dataset, so the score alone does not reveal the problem. The high-dimensional families exist to avoid it.

Prediction diagnostics

fig = clf.plot(kind="diagnostics", X=X_test, y=y_test)

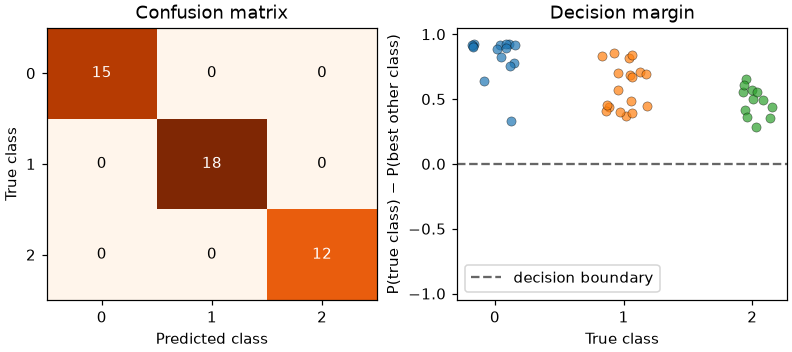

For a classifier, the left panel is the confusion matrix. The right panel shows the decision margin of every sample, grouped by its true class: the probability given to the true class minus the highest probability given to another class. A sample below zero is misclassified, and samples just above zero are the ones the model is least sure about.

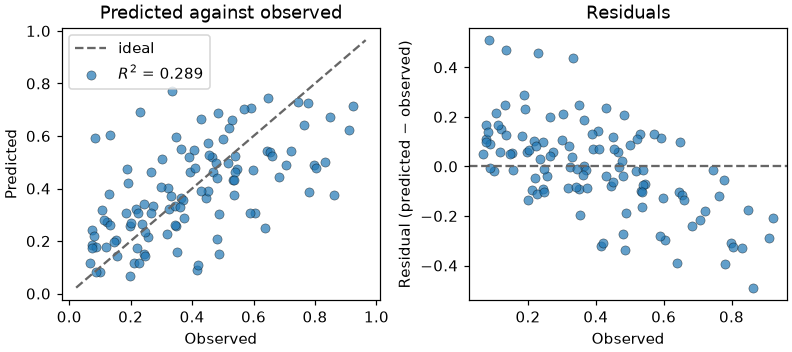

For a regressor, the panels are the predicted against the observed values and the residuals:

from sklearn.datasets import load_diabetes
from sklearn.model_selection import train_test_split
from sklearn.preprocessing import MinMaxScaler

from highfis import HTSKRegressor

X, y = load_diabetes(return_X_y=True)
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.25, random_state=0)
x_scaler, y_scaler = MinMaxScaler().fit(X_train), MinMaxScaler().fit(y_train.reshape(-1, 1))

reg = HTSKRegressor(n_mfs=3, epochs=150, random_state=0)
reg.fit(x_scaler.transform(X_train), y_scaler.transform(y_train.reshape(-1, 1)).ravel())

fig = reg.plot(
    kind="diagnostics",
    X=x_scaler.transform(X_test),
    y=y_scaler.transform(y_test.reshape(-1, 1)).ravel(),
)

What to look for: residuals that trend with the observed value, as here, mean the model shrinks its predictions towards the mean.

Feature importance

ax = clf.plot(kind="feature_importance", top=8)

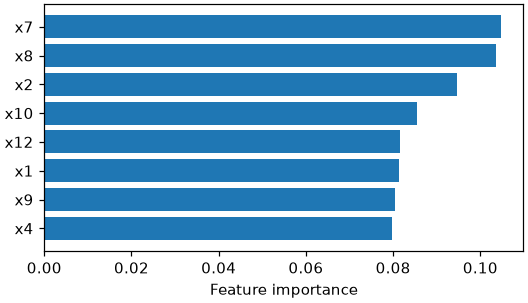

The bars are the values of clf.feature_importance(): the mean magnitude of the consequent coefficients of each feature, normalized to sum to one, from the largest. top sets how many features are drawn (20 by default, None for all). The features are named as in fit when the data had names, for example the columns of a DataFrame.

What to look for: the inputs must be on a common scale for the coefficients to be comparable. With thousands of features, a few bars far above the rest point to the features to look at first.

Gates

DG-TSK, DG-ALETSK and FSRE-ADATSK train a gate for every feature and for every rule, and keep the features and rules whose gates pass a threshold:

from highfis import DGALETSKClassifier

gated = DGALETSKClassifier(n_mfs=3, dg_epochs=40, finetune_epochs=60, random_state=0).fit(X_fit, y_fit)

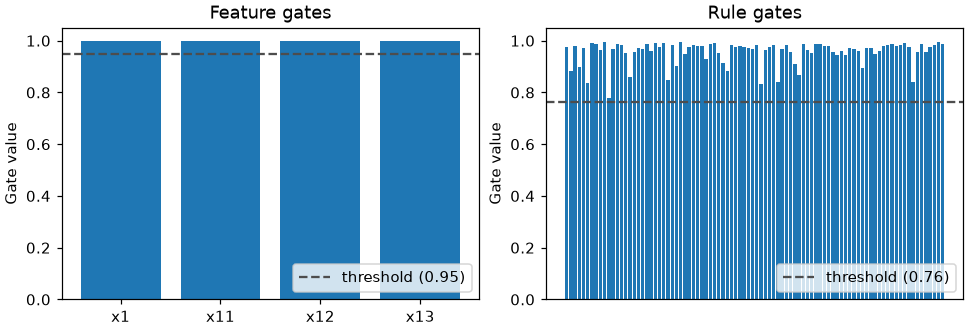

fig = gated.plot(kind="gates")

The left panel has one bar for each feature in selected_features_ and the right panel one for each rule of the fitted model; the dashed lines are the thresholds. The values are those of get_feature_gates() and get_rule_gates(), at the end of the phase that trained them. For FSRE-ADATSK, whose gate is an odd function, the magnitude is drawn. The other families have no gates, and the plot raises a ValueError for them.

What to look for: gates just above the threshold belong to features or rules that a slightly different threshold, or a shorter gate phase, would have removed.

Drawing on your own axes

import matplotlib.pyplot as plt

fig, (left, right) = plt.subplots(1, 2, figsize=(9, 3.5))
clf.plot(kind="history", ax=left)
clf.plot(kind="rule_activation", X=X_test, y=y_test, ax=right)

Single-panel plots take one Axes. "memberships" takes one per feature shown, and "diagnostics" and "gates" take two.

The same functions are available in highfis.plotting and take the estimator as their first argument; see the API reference.
